Medical packaging equipment and packaging materials for medical device, pharmaceutical and diagnostic test kit packaging

Medical Systems for Industry

table top plastic medical tubing coiling equipment

Table top plastic tubing coiling machine. Will coil smaller diameter tubing sets and single pieces of tubing. Automatic counter for number of turns, mandrels drop to easily remove tubing.

The MINI-WINDER is used for coiling medical grade plastic tubing. This coiling machines increase production output and also prevent carpal tunnel syndrome injuries.

Medical Tubing (pre cut to length) is placed on the coiling machine. The mandrel on the coiling machine rotates the exact number of turns to complete the coil. After it stops, the pins on which the coil was wrapped descend into the coiling machine, enabling the operator to slide the coil into a package.

The MINI-WINDER and Medi-Windertm have the following features:

1. Automatic tubing coiling, the machine counts the number of turns and stops. No need for manual control. No overruns.

2. Completely adjustable mandrel to accommodate many tubing coil diameters.

3. Produces uniform tubing coils each time faster than manual coiling.

4. Packaging fixture enables you to place a pouch or bag on for easy loading of tubing into pouch..

5. All timing and counting functions can be changed easily.  PLC controlled and completely programmable.  Auto or Jog modes.  Pause/Resume button.

6. Clean room compatible.

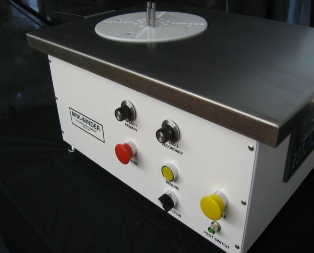

Mini winderTM - table top plastic tubing coiling machine

coilling machine for medical plastic tubing, tubing coiling equipment

Cohesive tape can band one side or can be wrapped completely around the coil of medical tubing

medical plastic tubing coiling equipment

Mini-Winder with custom large turn table

Click here for information on large hose coiling equipment

table top plastic tubing coiling equipment

Mini-Winder with PLC controls

Now available with option of feeding from a reel, and having the machine automatically cut to a pre-determined length.
