Thermoform trays for Catheter Packaging

Long thermoform trays for packaging catheters and other long medical devices like endoscopy products

Click for information on thermoform leak detection equipment - ASTM F 2338-09 test

We specialize in making long thermoform trays for long medical devices like catheters, and endoscopy products.  We can make trays up to 48 by 72 inches. A long straight package prevents the catheter from taking a ‘set’ if it is packaged in a coil while it is sterilized. We can manufacture rigid trays in a one-piece rigid trays up to 72 inches in length.

We can also assist in the design of thermoform trays, and have internal mold making capabilities.  We can also provide samples thermoform trays with sealed Tyvek lidding for evaluation purposes.

Thermoform trays are made from material like, ABS, HIPS, PVC, PETG, HDPP ABS, HDPE, LDPE and Valox as well as AC/PETG and AC/PVCFilms - Co-Extruded films, and speciality films.

All thermoform trays formed in production are to GMP and SPC standards and come with full documentation when required. ISO 9008 - 2008 compliant manufacturer of thermoform trays for medical device packaging.

Click for information for medical validateable blister heat sealers.

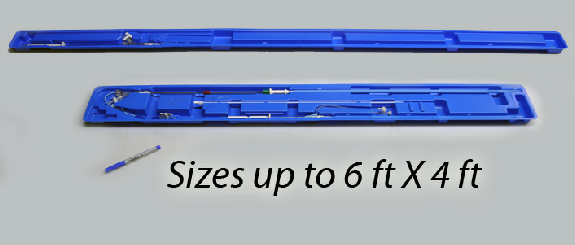

medical thermoform trays for packaging long catheters

Components in the tray - please note the arrow on the tray shows the location of ‘undercuts’. The ‘undercuts’ are sections where the tray will ‘hold’ the cylindrical parts of the introducer sleeve in the tray.

We can also supply Tyvek pouches for catheters, sizes up to 72 inches.  Clean film is Nylon for added strength.
