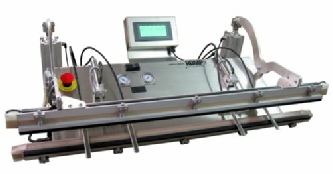

Large Medical vacuum validatable heat sealers


• Full Digital, High-Speed, PLC Controller

• Color enhanced LCD Touch screen HMI.

• Password protected digital control of:

All Seal parameters; temperature, time, pressure

6 Seal Process Recipes

Alarm Settings

Calibration Screens

5 Selectable Operating modes:

Gas-Vac-Seal (1-99 cycles)


Seal Only


Vac-Gas-Seal (1-99 Cycles)

Visible and Audible Alarms:

Cold Seal Temperature Profile

Jaw Obstruction

Seal Temperature with High & Low Alarms

Seal Pressure with High and Low Alarms

• NEMA Stainless Steel Enclosure:

• Gas Purge Standard

• Retracting Vacuum Nozzles (4)

• Selectable Upper & Lower Heating elements

External Verification Ports for Calibration:

Seal Temperature

Seal Time

Seal Pressure

Gas Pressure


Seal Length: 30”, 35”, 40”, 50”

Seal width: 3/8” Standard, ¼” optional

Vacuum Pressure: Up to 26 in Hg Standard


Power: 120 Vac, 20A / Optional 220V

Compressed Air: 9.2 SCFM @ 90 PSI

30”, 35”, 40”, 50” Seal bar lengths

Large Medical validatable vacuum heat sealer for medical device packaging
