Medical packaging equipment and packaging materials for medical device, pharmaceutical and diagnostic test kit packaging

Medical Systems for Industry

Tyvek Pouch Printing Equipment for Medical Packaging

Tyvek Lidding Printers - also prints on laminated foil packaging, Mylar pouches

Thermal Transfer Printing on pouches of bar codes for UDI compliance for medical packaging

Table top Tyvek pouch ( and foil and Mylar pouches) thermal transfer printing equipment for UDI compliance for serialization requirements for printing machine readable labels. Prints all style of bar codes including 2D bar codes, will also inspect/verify bar codes.

Will print with a thermal transfer printer directly on Tyvek pouches, Mylar pouches, medical grade paper pouches, foil pouches and Tyvek lidding without using a label. It can also print on items as thick as card stock and blister cards. It can also print on flat folded boxes too.

The cleanroom compatible machine feeds pouches (or Tyvek die cut lidding) from a magazine, and with a high definition thermal transfer printer prints directly on Tyvek or Mylar foil pouch. This eliminates using a separate label to print information on Tyvek and foil laminate Mylar pouches.

Printing directly on the pouch reduces labor costs in applying labels, and the cost of the label. It also maintains the breath-ability of Tyvek, since there is no label to block the permeability of EtO gas into the pouch or through the Tyvek lid.

Printer Features

Ultra high speed operation
12 dots/mm (305 dpi) resolution

Self leveling printhead
All electronic operation
Easy loading ribbon magazines

Wide range of print areas
Large capacity 3.5mb memory

Upgradeable modular construction

Onboard diagnostics
Printer status display

     Multi-level password protected access

      Electronically adjustable print position

      Full networking capability

printer for Tyvek pouches

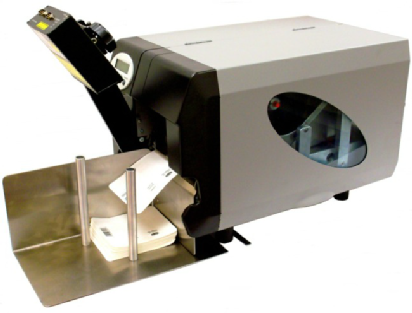

Table top Tyvek pouch printer; thermal transfer prints pouches and Tyvek lids up to 10.5 inch wide

Click to see our large full feature printer system for pouches and lidding

To see in-line Tyvek printing on rollstock

Optional Vision System is available for 100% inspection. Also perform a Bar Code Read and Verification for UDI compliance as well as pixel match on all copy within the depth of field set by the customer.

*Shown with optional Bar Code Reader to read printed bar codes for UDI compliance

Tyvek pouch

Foil pouch

Please contact us for details and pricing

To see video  of machine in operation click here

Tyvek lidding

We can also upgrade feeder systems on other brands of pouch printers
